The Delair® Etsiline is now an even better way to combat moisture and condensation, the greatest enemies of networks, cables and signals. The revamped Delair Etsiline CommPact makes it even easier to keep cables dry and remove condensation and moisture using dry air. The Etsiline CommPact is smaller and can be read and managed remotely.
A perfect and reliable result with even greater convenience and lower costs
The new design is compact: its just 9 cm high and can therefore be installed virtually anywhere. The web interface allows you to read and manage it remotely. An engineer can access the information, identify and assess problems and change the settings from any location. The Etsiline CommPact is therefore easier to use and requires less employee deployment and less travel time and travel expenses, and is operational again more quickly after maintenance and faults, even if the Etsiline is installed in hard-to-reach places. In other words, the Delair® Etsiline CommPact offers you a perfect and reliable result with greater convenience and lower costs.
The Delair® Etsiline CommPact is a SPX FLOW product. We supply modified and high-engineered solutions for end users and consulting engineers.
Feel free to contact us for more information about us or about the Etsiline CommPact.
The Delair® Etsiline CommPact in brief
|Etsiline CommPact 028 1400|
|Operation||Fully automatic and continuous|
|Dry air capacity (l/h) at 20 mbar||> 120|
|Outlet dew point at 23°C and 83% RH||< -40 °C|
|Standard working pressure (mbar)||20 - 30|
|Power Supply (V)||48VDC|
|- Drying (W)||13|
|- Regeneration (W)||55|
|- Stand-by (W)||6|
|Sound level (dB(A)||< 43|
|Outlets, with shut-off valve||8
Tubing 6/8 mm ID/OD
|Remote sense input||Included|
|Ambient temperature||-10°C - +45°C|
|Relative humidity||Max. 95%|
|Mounting||Width (mm)||Depth (mm)||Height (mm)|
|- Wall mounting (optional)||483||300||88,9|
|- Floor / Table mounting (optional)||483||300||93,0|
|Combined alarms, dry contact||Low-, high pressure, Run Time|
|Humidity alarm (optional)|

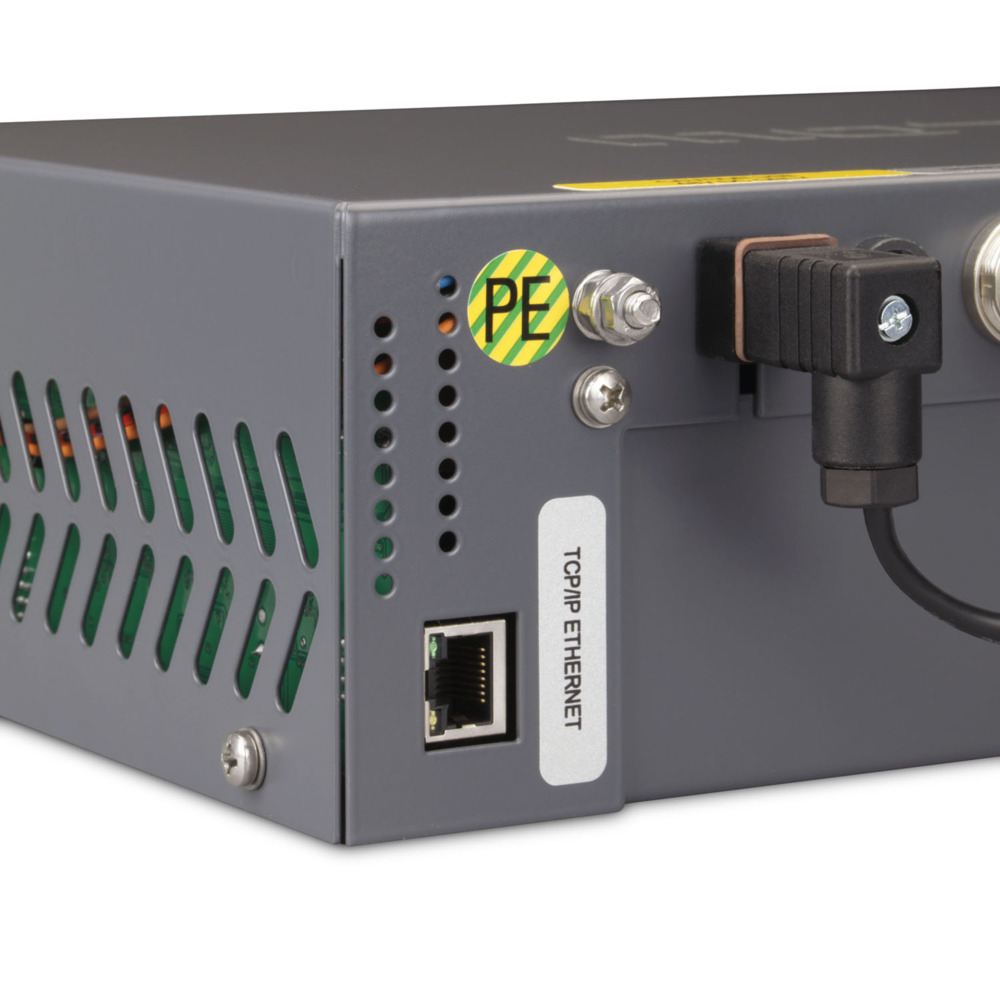

|Communication||TCP / IP Ethernet|
|Dry contact SPDT|
